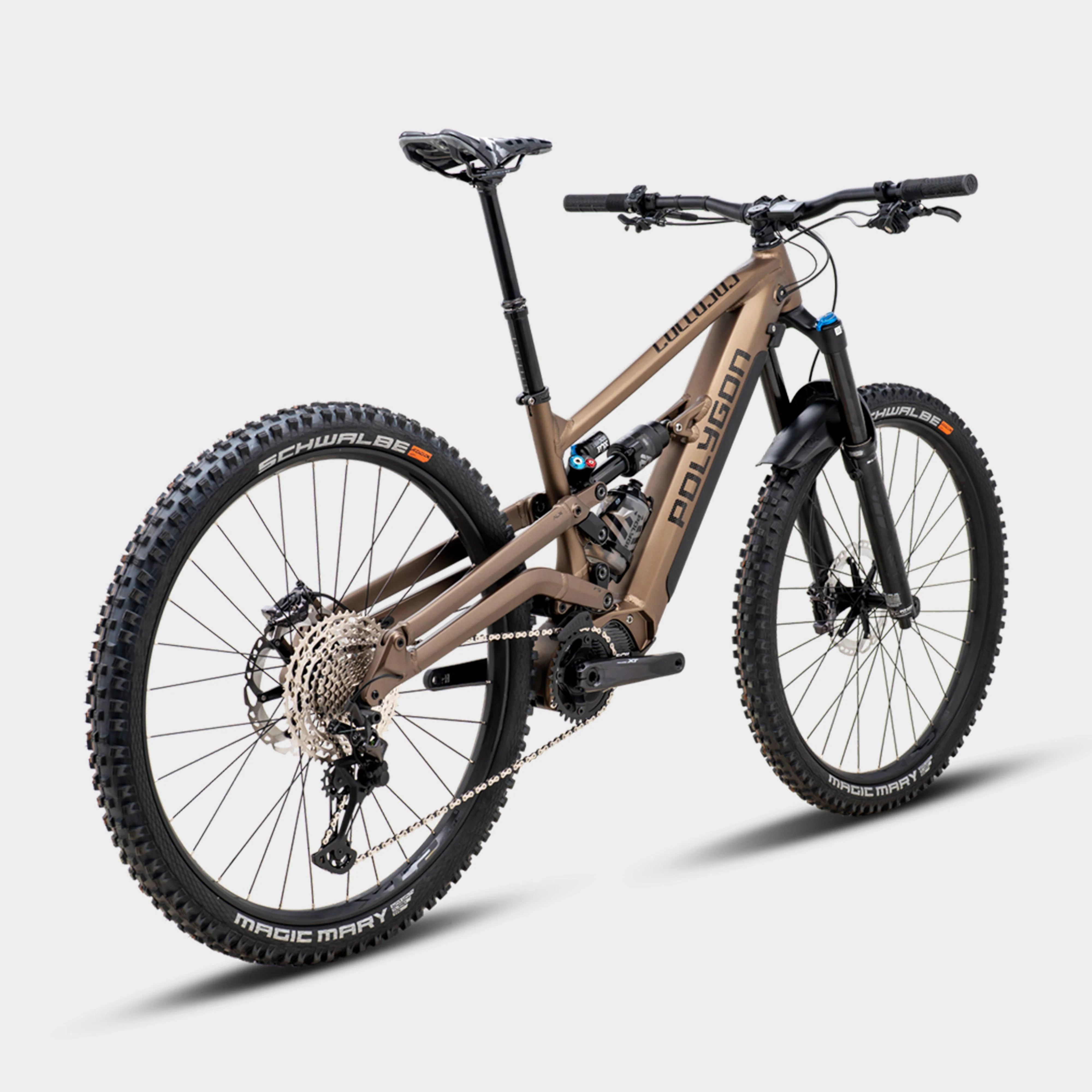

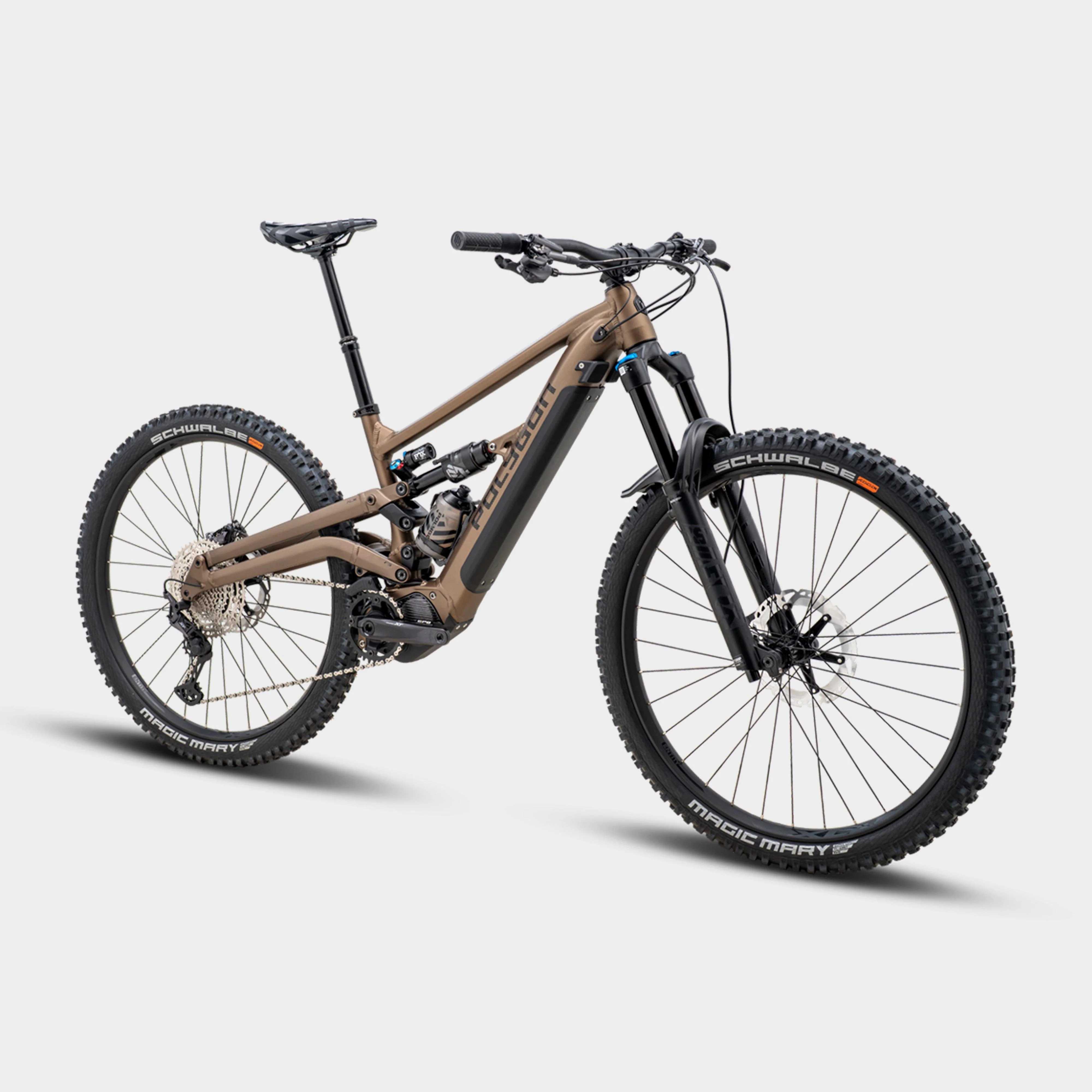

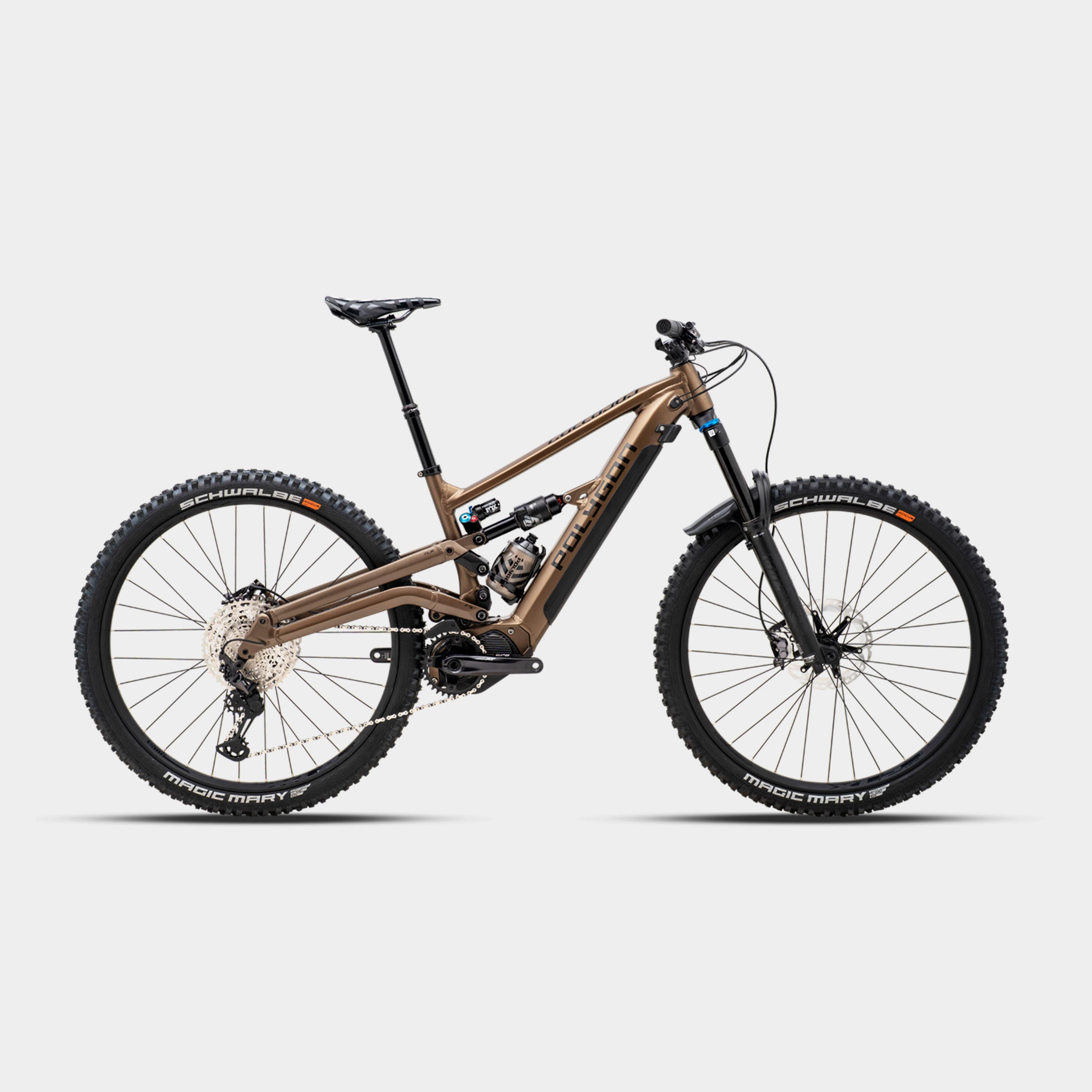

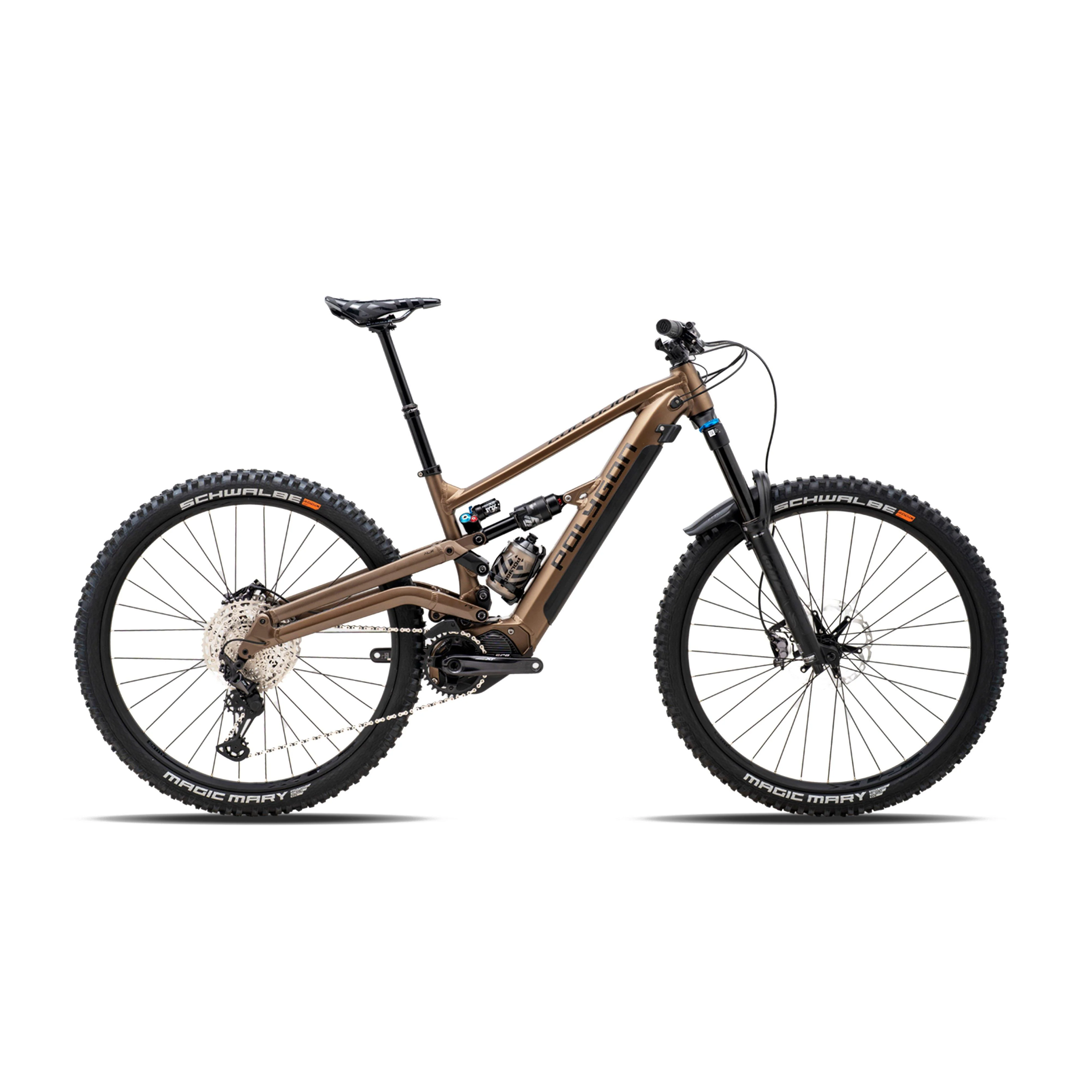

Collosus N8E E-Bike

By adding top-spec Shimano eBike components to its big-hitting Collosus bike, Polygon has built a bike that is bound to put a very big smile on your face!

The bike itself is a monster - Upfront there’s a chunky FOX 38 Float Performance Elite fork with 160mm of travel at a 63.5-degree head angle to suck-up the lumps and bumps. The bike’s rear suspension is a sophisticated 6-bar linkage arrangement which makes the most of the FOX FLOAT X2’s suppleness and progressive feel.

With Shimano’s EP8 motor and a large capacity 630Wh battery on board, you’ll find riding uphill a blast too. The electric motor delivers 85Nm of torque which should drag you up any incline and extend your range to squeeze many more kilometres into your rides. The motor itself is restricted to 15.5mph (25kmh) and delivers the power to the wheels through a smooth Shimano SLX drivetrain.

Without good brakes and tyres this bike would be a runaway train. Fortunately, Polygon agrees. The N8E has Shimano XT M8120 brakes with 4 piston calipers, which provide plenty of stopping power. Schwalbe Magic Marys with the Addix soft compound are an aggressive tyre choice that deliver plenty of grip on all trail surfaces.

The Collosus N8E is a serious bike that’s armed to the teeth with premium components. With an ebike this capable you’re ready to take-on the steepest and longest trails of your life.

Read our ebike buyer’s guide for advice on motors, batteries and other componentry.

Feature Highlights

• FOX 38 Float Performance Elite 160mm – An impressive performer for bigger hits and rougher trails

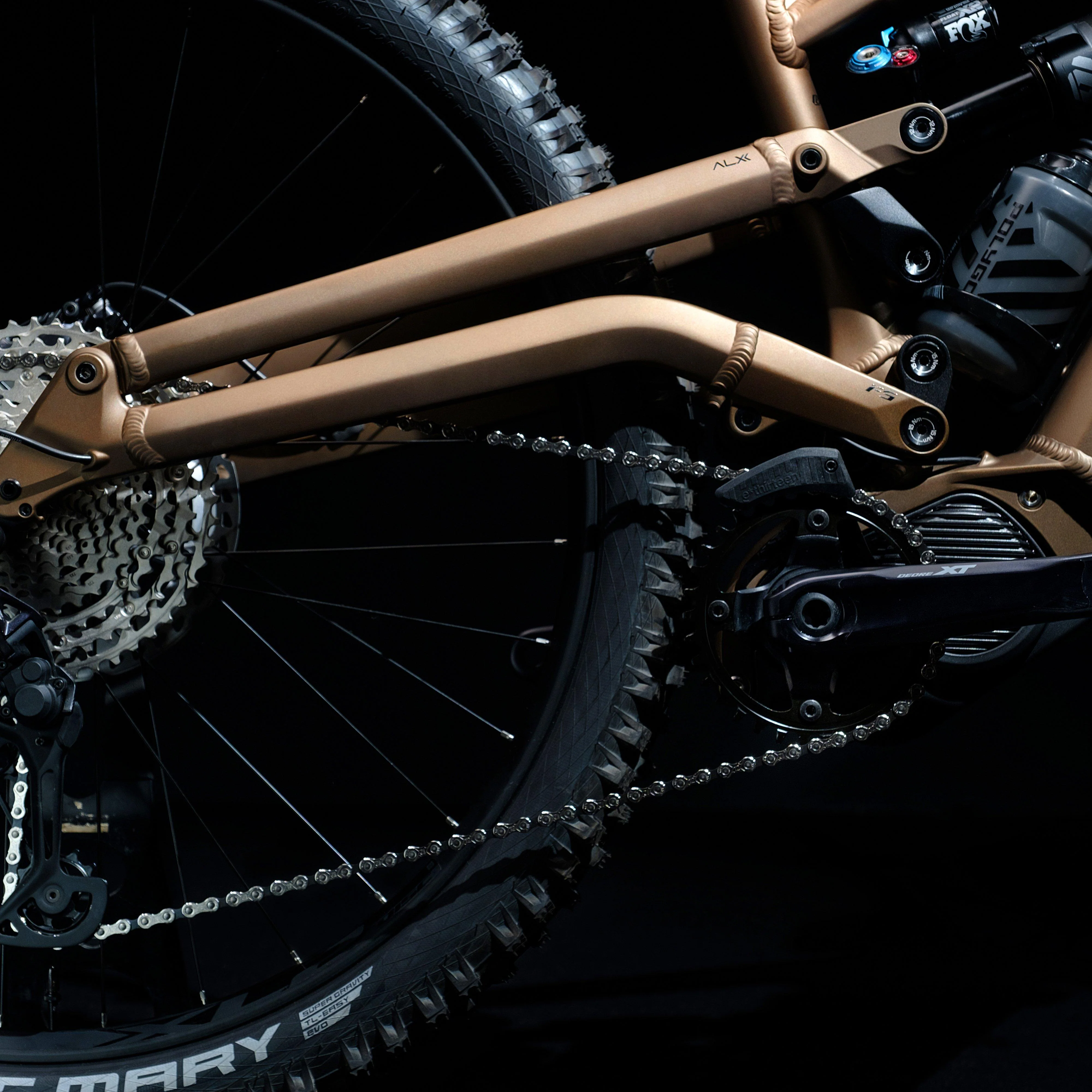

• 6-bar linkage rear suspension – No compromise between small-bump performance and the suspension’s progressiveness

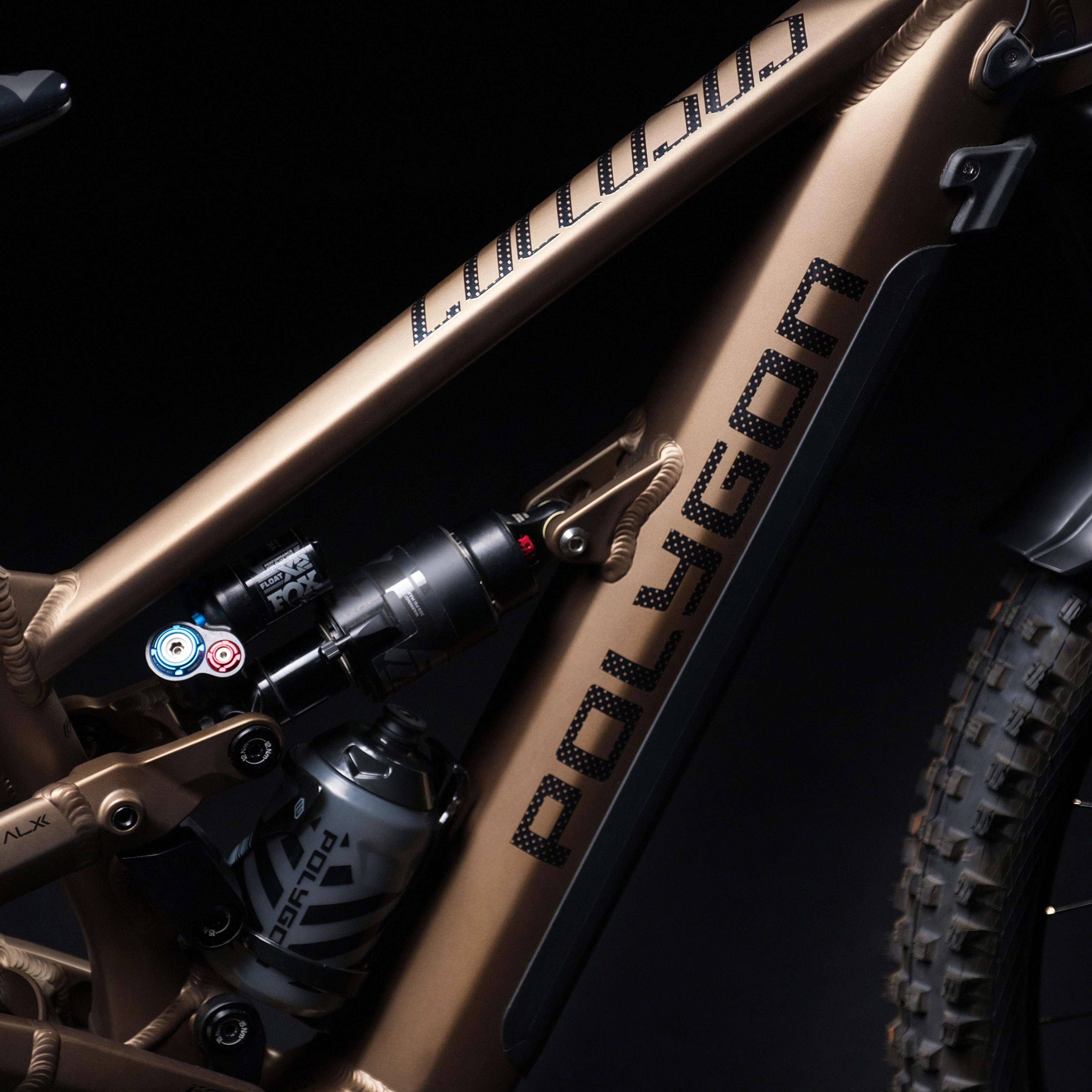

• FOX FLOAT X2 shock – A highly customisable and super-supple shock
• Shimano SLX 1x12 drivetrain – A premium drivetrain with plenty of range (10-51T)

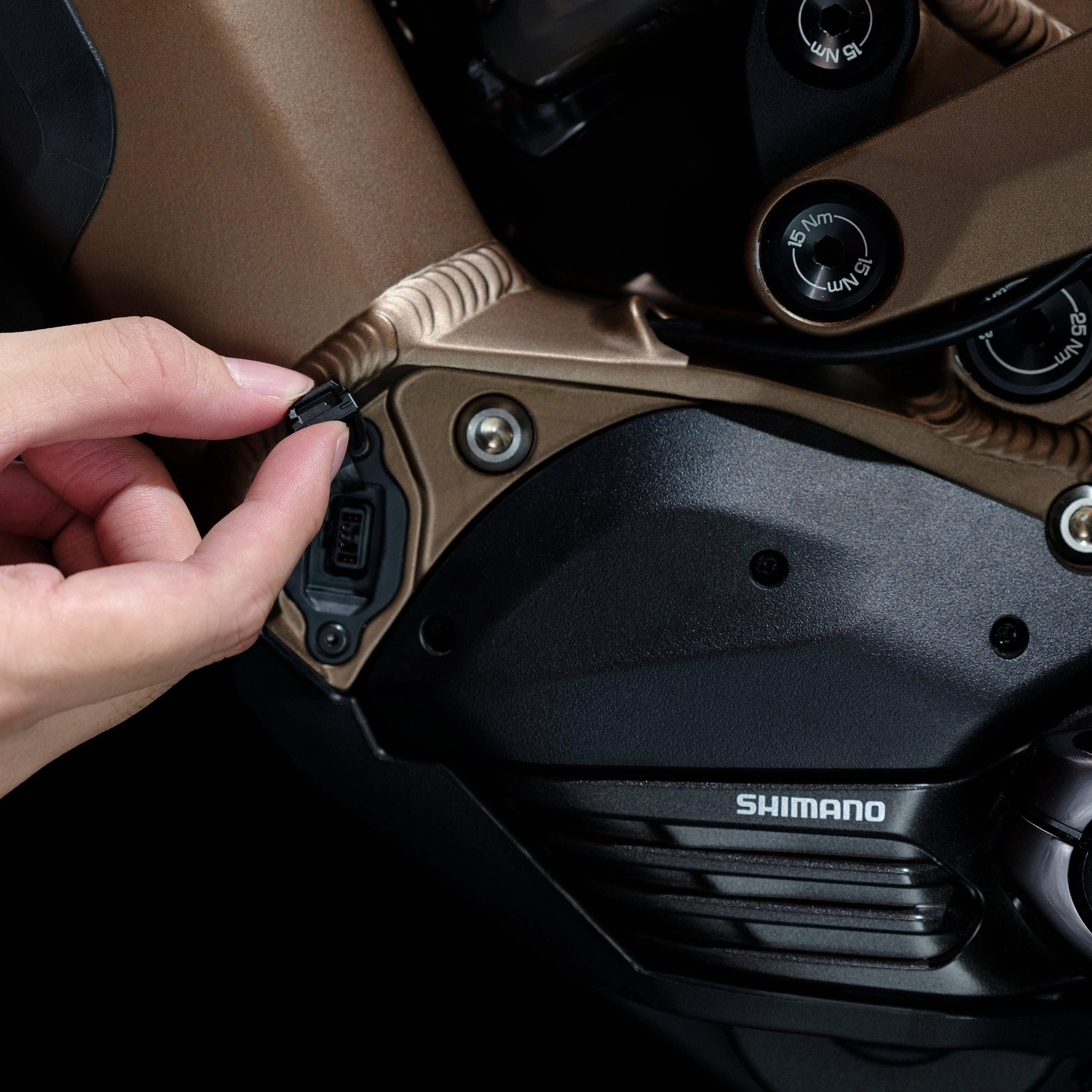

• Shimano EP8 motor – A powerful motor delivering 85Nm of torque with a lightweight magnesium body
• Shimano BT-EN806 battery – 630Wh of power cleanly integrated within the downtube
• Shimano XT M8120 brakes – 4-pot hydraulic stopping power with big 200mm Shimano rotors

About Polygon

Polygon is a world-renowned bike manufacturer with over 25 years of cycling expertise. Producing close to a million bikes at a state-of-the-art manufacturing facility, Polygon’s commitment to innovation and craftsmanship has picked up numerous industry awards.

Full Specification

• Frame: ALX Enduro frame
• Fork: FOX 38 Float Performance Elite, Float Evol, 160mm travel, offset: 44mm, Grip 2, hsc-lsc, hsr-lsr, w/ fender
• Rear shock: FOX Float X2, Air Spring, 2 position adjust, hsc-lsc, hsr-lsr, E2E: 205x65mm
• Handlebar: ENTITY, W: 780mm, BB: 35mm, R/D: 25mm, B: 9degree
• Stem: ENTITY, EXT: 35mm, BB: 35mm, R/D: 0degree
• Headset: FSA NO.57E w/ sealed bearing, ZS 44/28.6 | ZS 56/40
• Shifter: Shimano XT SL-M8100-r 1x12-speed trigger
• Crank set: Shimano SM-CRE80-12-B 34T chainring
• Cassette: Shimano Deore CS-M6100 12-speed 10-51T
• Rear derailleur: Shimano XT RD-M8100-SGS 12-speed
• Chain: KMC E12 for 12-speed
• Motor: Shimano DU-EP801 mid motor (25kph / 15.5mph)
• Sensor: Shimano EW-SS301 W/ 760mm cable
• Battery: Shimano BT-EN806 for down tube integrated - 630Wh (36V, 14Ah)
• Wheel set:
